Wieless RF Smart Home:

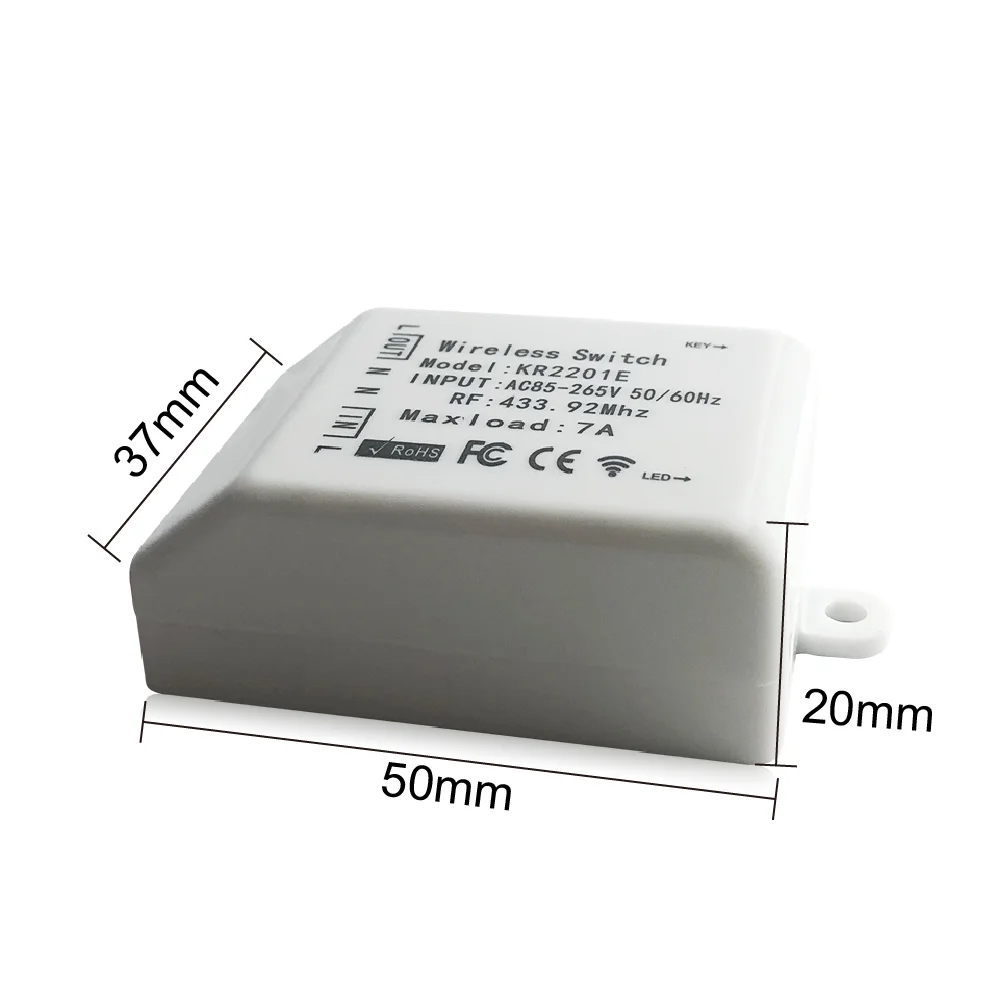

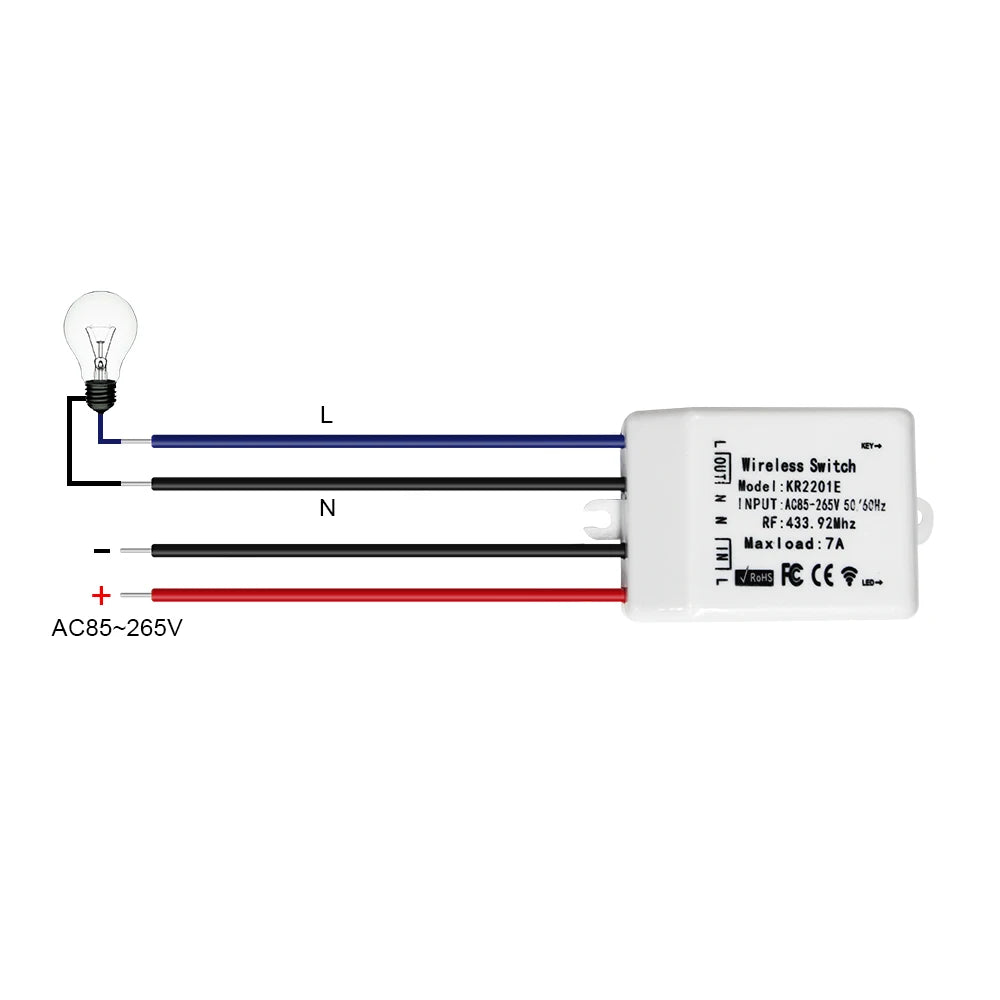

Model Number: KR2201E-4
Input voltage: 220V
Working current: 10A
Maximum load power: 2200W
Frequency: 433Mhz
Support encoding format: EV1527, PT2262
Working mode: Momentary, Toggle, Latching Time delay

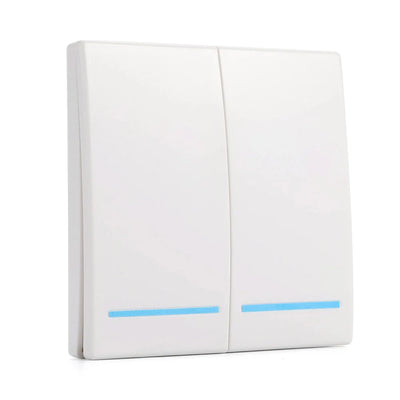

Technical Data Of Wall Panel Transmitter:

Model Number: QC-WP04433-1
Model Number: QC-WP04433-2

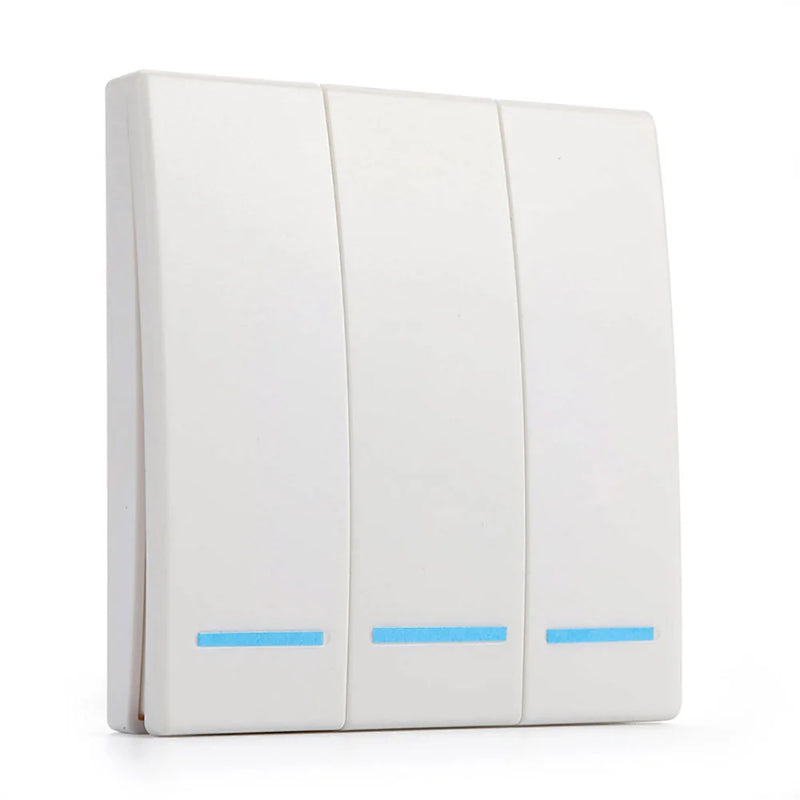

Model Number: QC-WP04433-3
Operating Frequency: 433MHz
Battery Model: CR2032 (Package Not included battery)

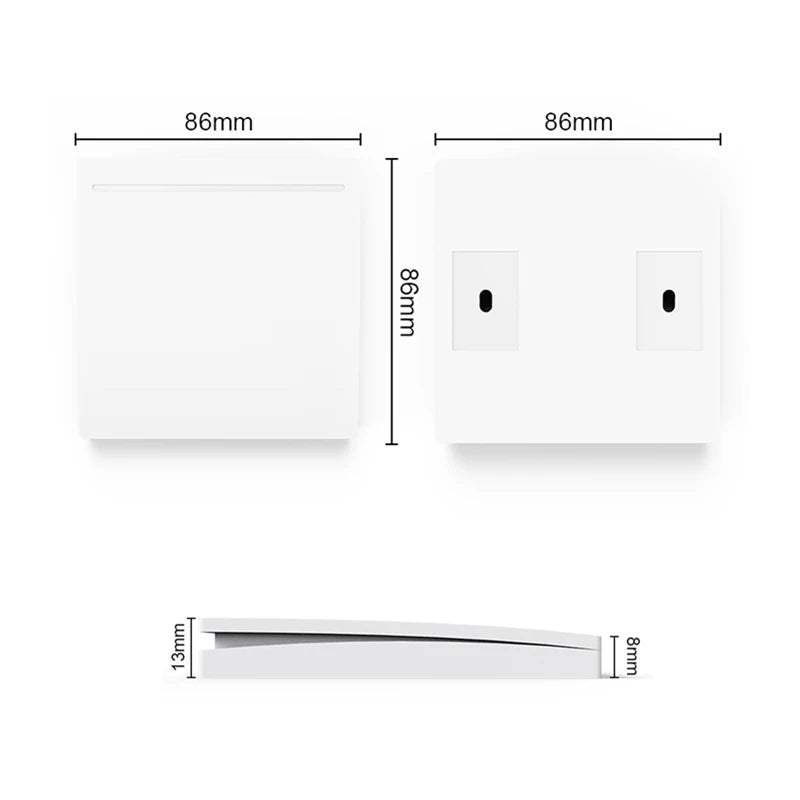

Dimensions: 86mm x 86mm x 13mm
Distance: indoor (20 meters) outdoor (80 meters)
Input Power: AC 85V - 250V
Standby Current: <5MA
RF Frequency: 433MHZ
RF working mode: Superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: 20-50m ( open space)
Decoding mode: MCU software decoding
Remote storage: 20pcs Support remote type: Learning code 1527Code
Working mode: Momentary, Toggle,Latching Dimension of PCB: 53.8*31.2mm

Instructions:

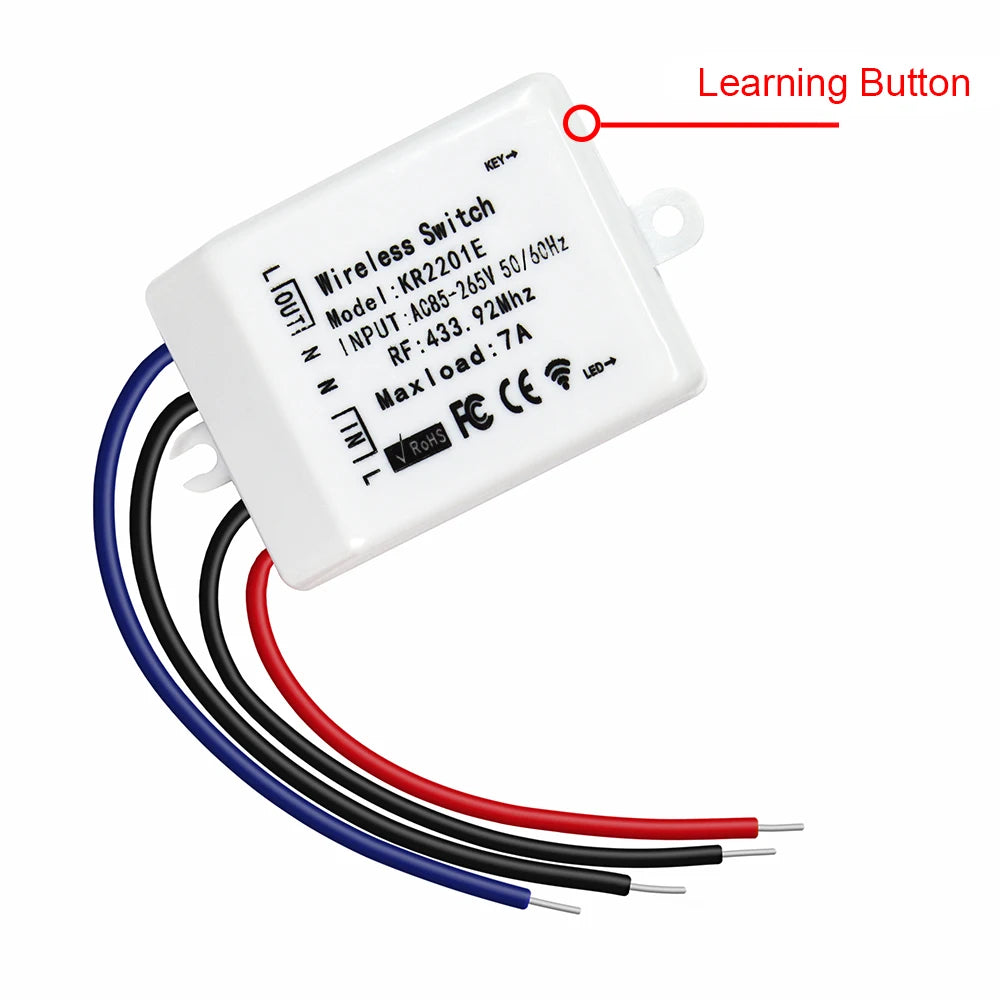

The first step: Clear the receiver's memory Press the Learning Button on the receivers for 8 times, the codes will be cleaned. After cleaning the code, all the remote control can not work any more.

Step Two : Match Wall Panel Remote Transmitter and Receiver Press the learning key on the receiver twice time, it comes into toggle setting mode. Wait for a moment, the LED will be on , it comes into learning state. Press the remote button, LED indicator on the receiver board will flash then come off Learning successfully.

About receiver's Working Mode:

Momentary mode: Press the Remote control button, the receiver's relay is ON; release button, the receiver's relay is OFF.

Toggle mode: Press Remote control button for 1 time, the receiver's relay is ON; press button again, the receiver's relay is OFF.

Latched mode: Press Remote control button A, the receiver's relay is ON, Press the transmitter's button B, the receiver's relay is OFF.

Reset function: After push the receiver's learning button 8 times, the receiver Clear all the remote control data in its memory. When the red LED flashes for a few times, it indicates that the clear function is completed. (After cleared the code in the receiver, all the remote control cannot work with the receiver.)

Matching method:
1. Setting momentary Mode: Press the receiver's Learning button 1 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's button, the receiver's red LED will flash then come off, Setting successfully.

2. Setting Toggle Mode (Common working mode): Press the receiver's Learning button 2 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's button, the receiver's red LED will flash then come off, Setting successfully.

3. Setting Latched Mode: (Note: When you choose "Latched Mode", you need to setting two different buttons on the Remote control, the first time learn is for "ON", the second time learn for "OFF". For example: button A = ON, button B = OFF) Press the receiver's Learning button 3 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's A button, the receiver's red LED will flash and then remains lit; Then press the remote's B button, the receiver's red LED will flash then come off, Setting successfully.

The package Included different products because you choose a Different options:

Package List 1:

1Pcs * KR2201E-4 433Mhz Receiver Module( Include Box)

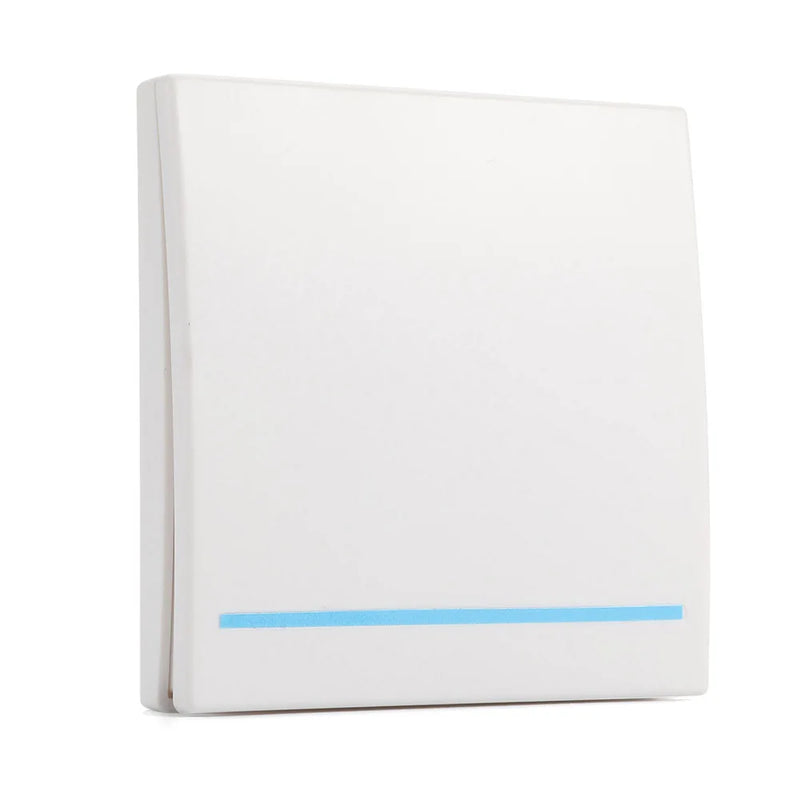

Package List 2:

1Pcs * QC-WP04433-1 Wall Panel Remote Control (No Include Battery)

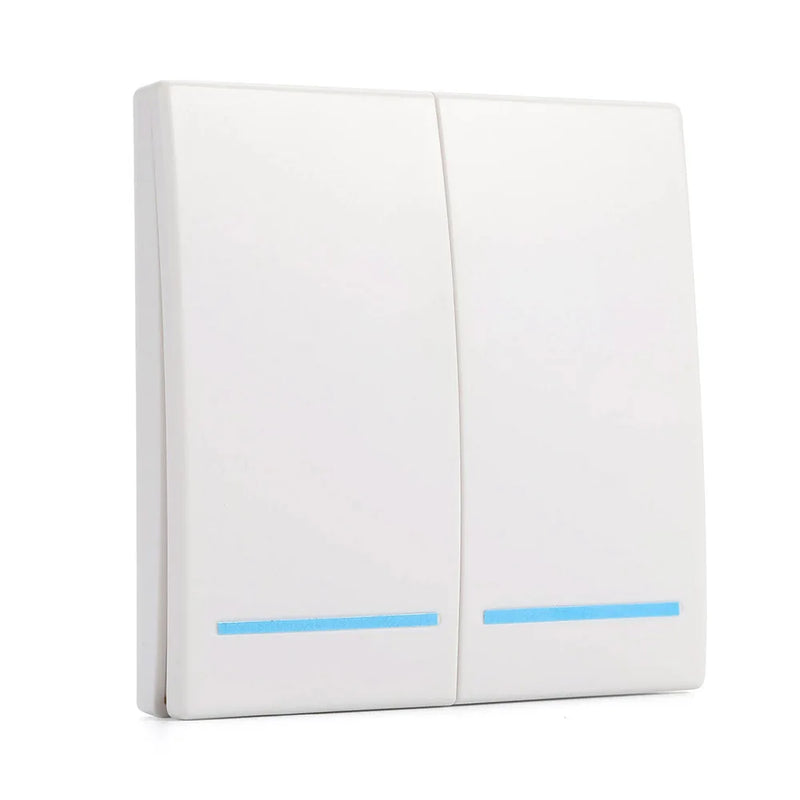

Package List 3:

1Pcs * QC-WP04433-2 Wall Panel Remote Control (No Include Battery)

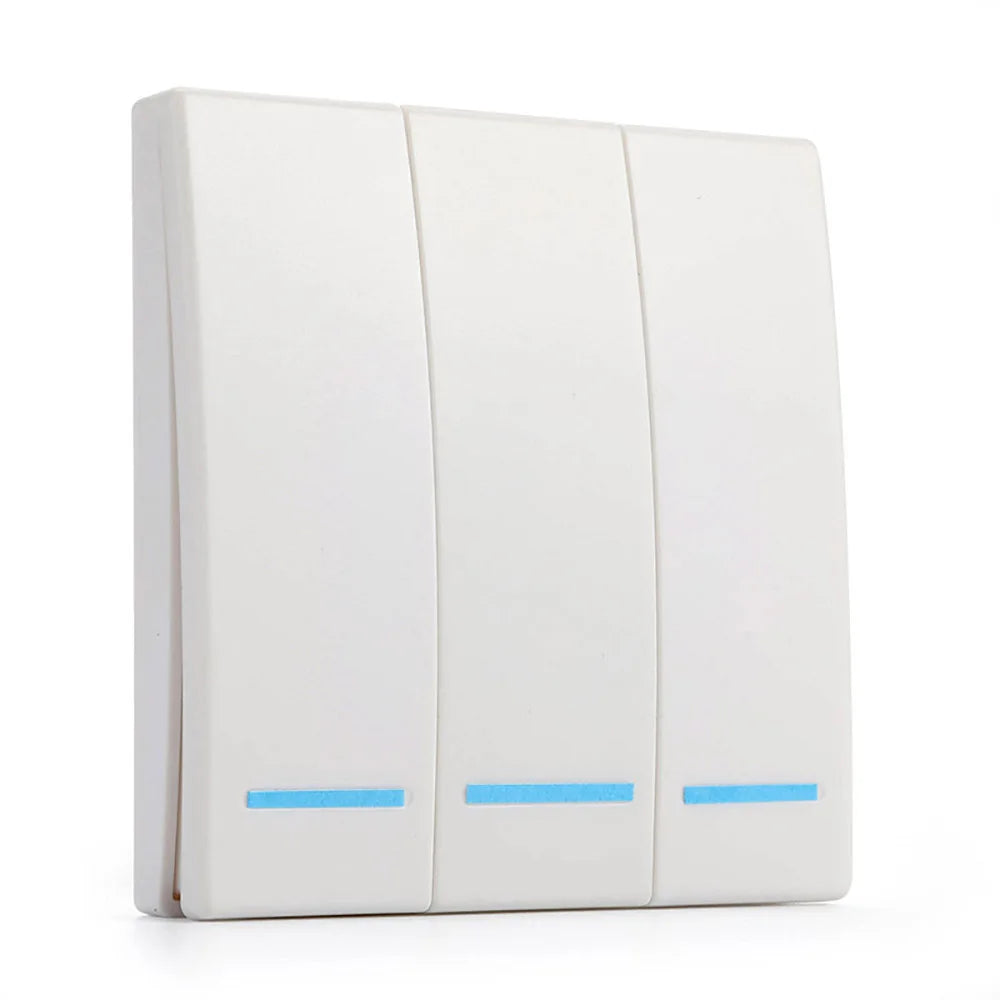

Package List 3:

1Pcs * QC-WP04433-3 Wall Panel Remote Control (No Include Battery)

Package List 4:

1Pcs * KR2201E-4 433Mhz Receiver Module( Include Box) 1Pcs * QC-WP04433-1 Wall Panel Remote Control (No Include Battery)

Package List 5:

2Pcs * KR2201E-4 433Mhz Receiver Module( Include Box) 1Pcs * QC-WP04433-2 Wall Panel Remote Control (No Include Battery)

Package List 6:

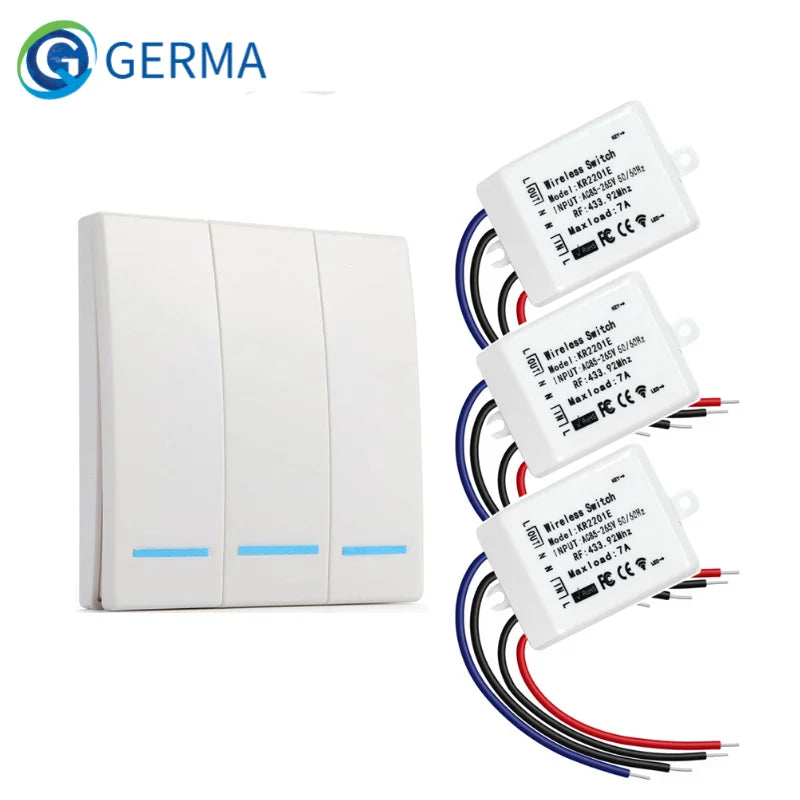

3Pcs * KR2201E-4 433Mhz Receiver Module( Include Box) 1Pcs * QC-WP04433-3 Wall Panel Remote Control (No Include Battery)

Note:

1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity.
2. Please promptly change battery when remote control voltage is insufficient (when the battery voltage is insufficient, generally get close transmitting).
3. Please pay attention to avoid metal mask,large equipment,strong interference electromagnetic filed when using wireless RF products, and avoid too short distance between the remote control and receiver board.
4. Please avoid abnormal using of the product.Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe.
