SPECIFICATIONS
Brand Name: EDUP
Hign-concerned Chemical: None
Origin: Mainland China
Certification: CE
Model Number: Universal garage remote control
Name: Gate remote control
Frequency: 433MHz, 433.92MHz
Code: Rolling & Fixed Code
Buttons: 4
Model 1: Garage Door Opener
Model 2: Remote Control for Gate
Model 3: Garage Door Command
Model 4: Gate Control
Model 5: Garage Commander
Model 6: Garage Door Control
Model 7: Remote Control Garage
Model 8: Door Remote Control

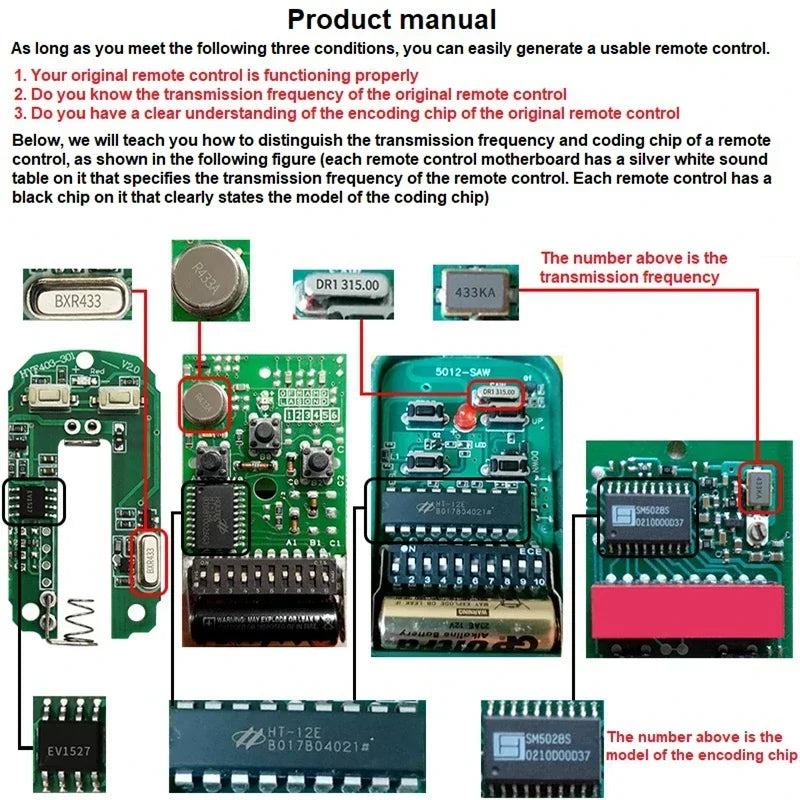

1.Chips could be copied
2260(all manufacturers);2262(All manufacturers);PT2264, 5326(All manufacturers);SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918series,527(All manufacturers);1527(All manufacturers);2240(All manufacturers);HCS101, HCS200\HCS201(part code),HCS300\HCS301(部分代码), part single chip microcomputer..........
2.Code cleaning method:
Press the unlock button and lock button at the same time(some shells are the up button and down button), after the LED indicator light flashes three times, loosen any one of the buttons while the other is kept pressing, then push the released button three times, the LED indicator will enter into the fast flashing status. At this time all the memory data is cleared, the cleaned remote control will not have lighting LED indicator no matter which button you press.
3. Copy method
One hand keeps the original remote controller, while another keeps the copy remote control, the two remote controls should be placed as closely as possible (the ideal situation is to put the two remote controls on the desktop side by side with zero distance), respectively press down the copy button, when the LED indicator light flashes quickly after three flashes, this copy is successful, other key operating methods are the same. Some remote control has a smaller transmitting power, so the original remote control should be placed back to the copy remote control to be operated. For the presence of noise, it should avoid interference to operate, If the copy is not successful, it should recopy after clearing code.( Attention:Your original remote control must be able to work and the same as our remote control frequency
4. The features of new copy remote control
The four buttons could respectively copy four different types of chips, That is a remote control can operate four different types of facilities. T Faster copy data speed, not easy losing code, far distance.
2260(all manufacturers);2262(All manufacturers);PT2264, 5326(All manufacturers);SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918series,527(All manufacturers);1527(All manufacturers);2240(All manufacturers);HCS101, HCS200\HCS201(part code),HCS300\HCS301(部分代码), part single chip microcomputer..........
2.Code cleaning method:
Press the unlock button and lock button at the same time(some shells are the up button and down button), after the LED indicator light flashes three times, loosen any one of the buttons while the other is kept pressing, then push the released button three times, the LED indicator will enter into the fast flashing status. At this time all the memory data is cleared, the cleaned remote control will not have lighting LED indicator no matter which button you press.
3. Copy method
One hand keeps the original remote controller, while another keeps the copy remote control, the two remote controls should be placed as closely as possible (the ideal situation is to put the two remote controls on the desktop side by side with zero distance), respectively press down the copy button, when the LED indicator light flashes quickly after three flashes, this copy is successful, other key operating methods are the same. Some remote control has a smaller transmitting power, so the original remote control should be placed back to the copy remote control to be operated. For the presence of noise, it should avoid interference to operate, If the copy is not successful, it should recopy after clearing code.( Attention:Your original remote control must be able to work and the same as our remote control frequency
4. The features of new copy remote control
The four buttons could respectively copy four different types of chips, That is a remote control can operate four different types of facilities. T Faster copy data speed, not easy losing code, far distance.
