SPECIFICATIONS
Working Voltage: AC 85V~240V
Max current: 10A
Max load: 2200W
RF frequency: 433MHz
Receiver Body Size: 47*42*27mm
Receiver Total Size: 67*42*27mm
Weight: 35g
Working temperature: -10~+70 Celsius
Receiving Sensitivity: 97dbm
Amount of storage remote controls: 20 pieces

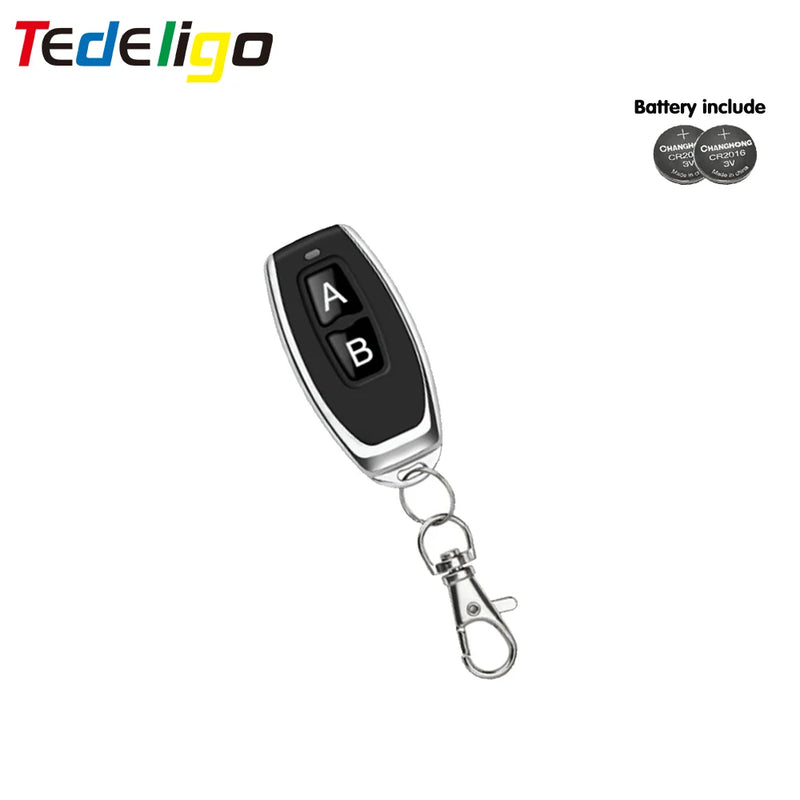

Remote Control Battery: 2CR*2016 (include)
Support encoding: 1527 Leaning code/2262 fixed code
RF Operating mode: ASK superheterodyne wireless reception
Receiving range: Open space is more than 50 meters

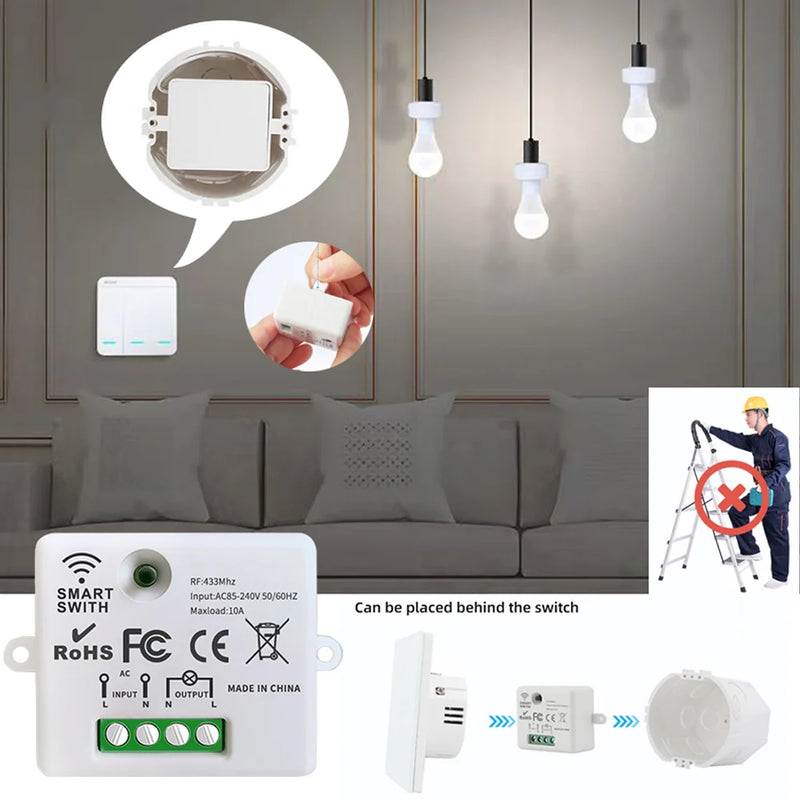

Application scenario: Family, Farm, Factory, Office, Supermarket
Application2: Light, LED, Lamps, Fan and so on
Brand Name: tedeligo
Model Number: 2201m+KT05
Wireless Communication: RF
Package: Yes
Use: Universal
Use: Lighting
Use: SWITCH
Channel: 1
Frequency: 433 MHz
Origin: Mainland China
Support APP: No
Certification: CE
Certification: RoHS
Choice: yes
semi_Choice: yes

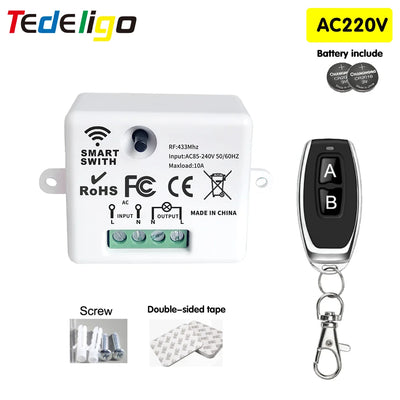

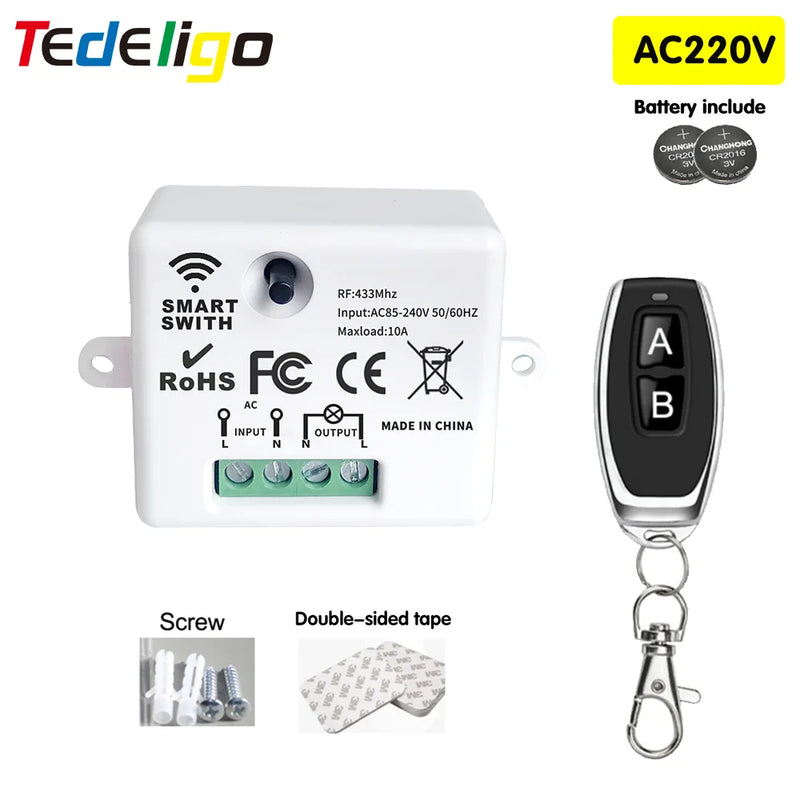

433MHz AC 110V 220V Wireless RF Remote Control Switch 1CH Relay Receiver With ON/OFF Transmitter For Led Light Bulb DIY Control
Relay Receiver Board Parameter
Working voltage : AC 85V~240V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W
Receiver Body Size : 47*42*27mm
Weight:35g
RF frequency : 433MHz

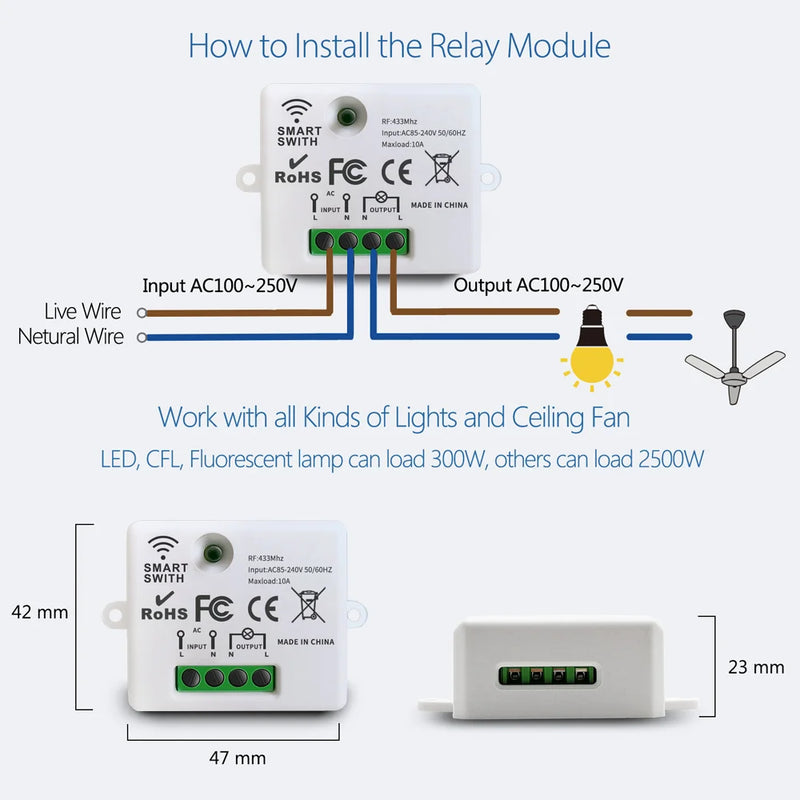

Pin : L \ N
Working temperature : -10~+70 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 20 pieces
Support encoding : EV1527 Leaning code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 50 meters
Remote operating mode : Toggle Mode / Latched Mode
Working Mode
Toggle mode:
Press A button,the relay will work;press A button again,this relay will stop.
How to Set up
Toggle mode:
Press learning button twice,press A button once,succeed.
Reset
Clean data:
Press learning button 8times,the data will be cleaned.All remotes cannot control this receiver.
