Features:

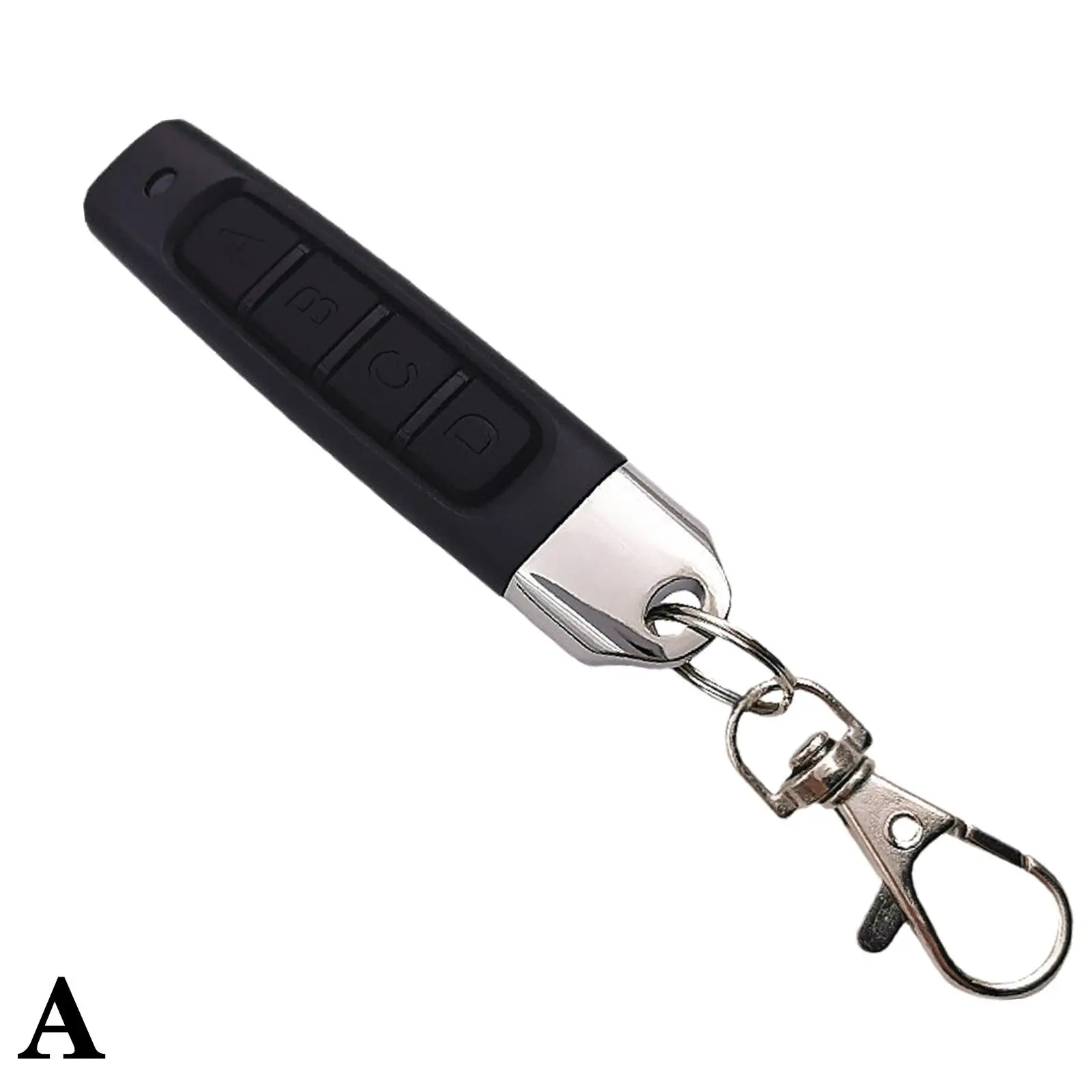

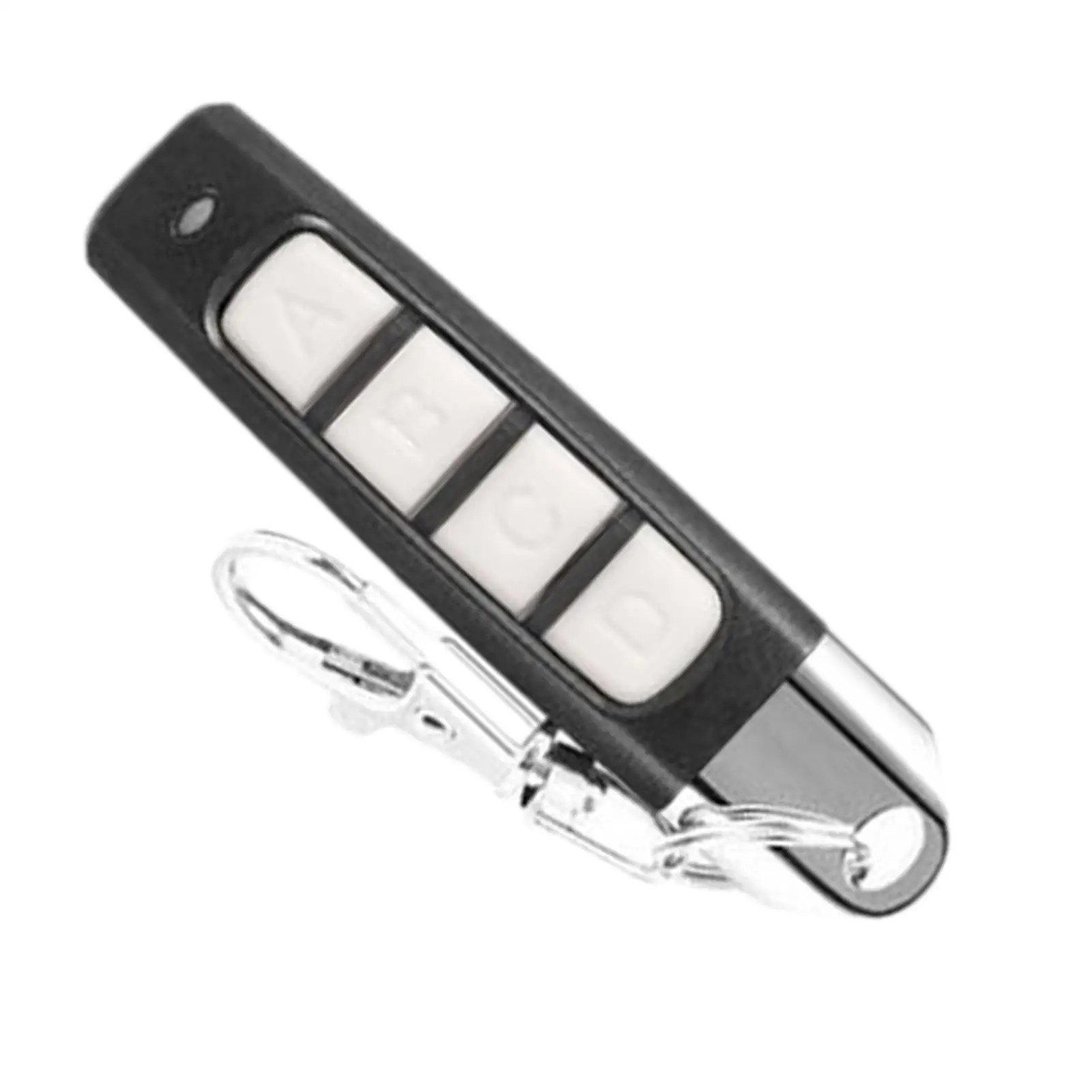

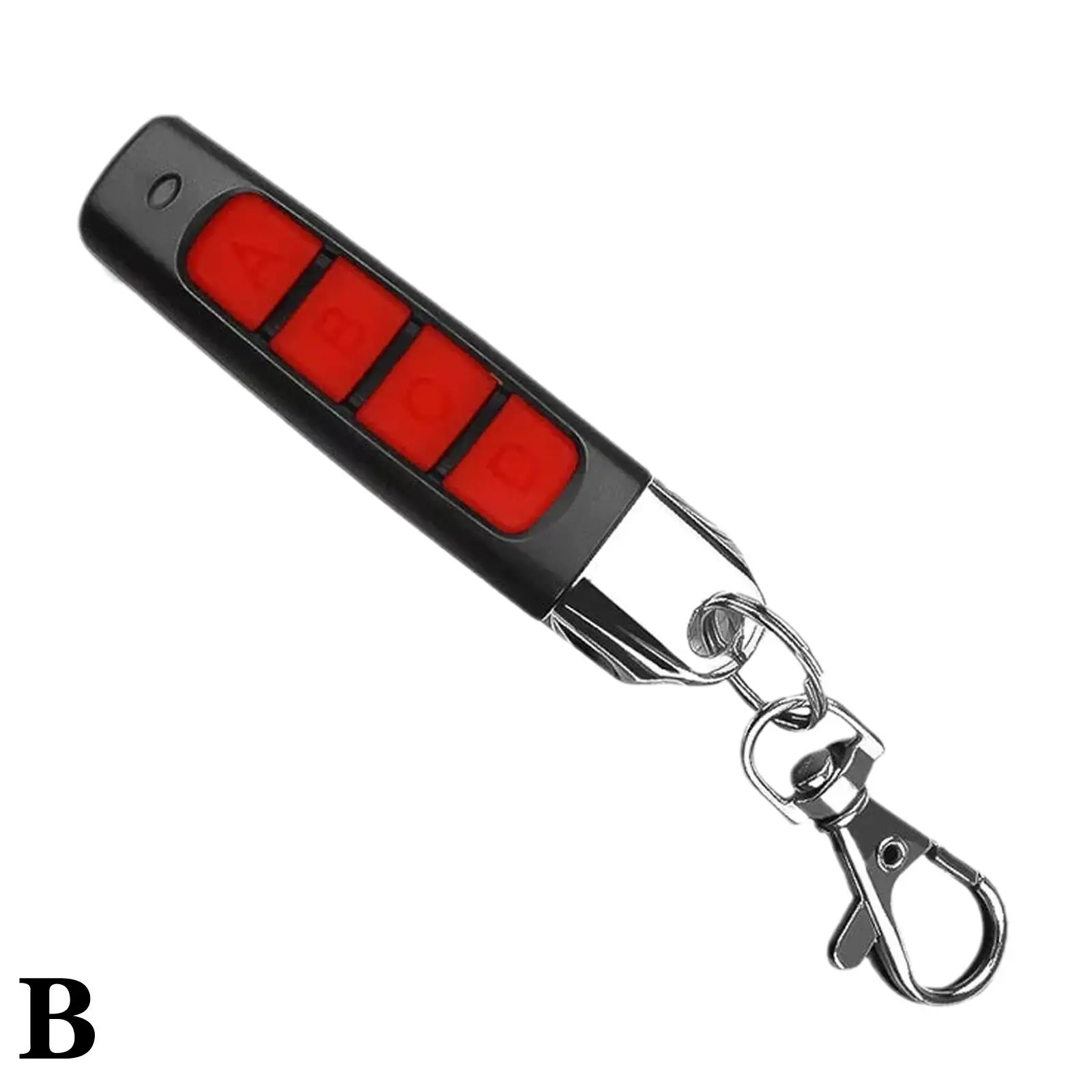

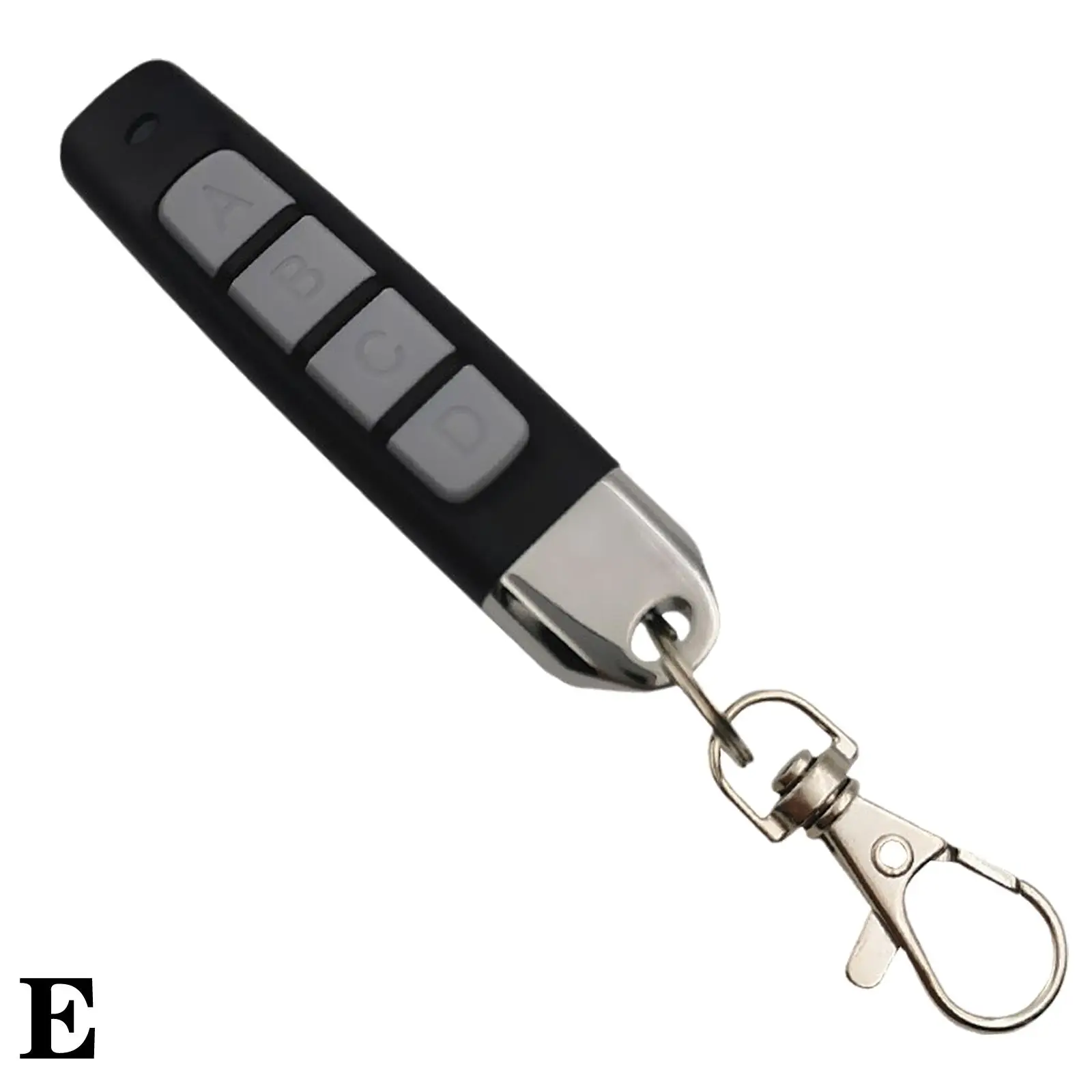

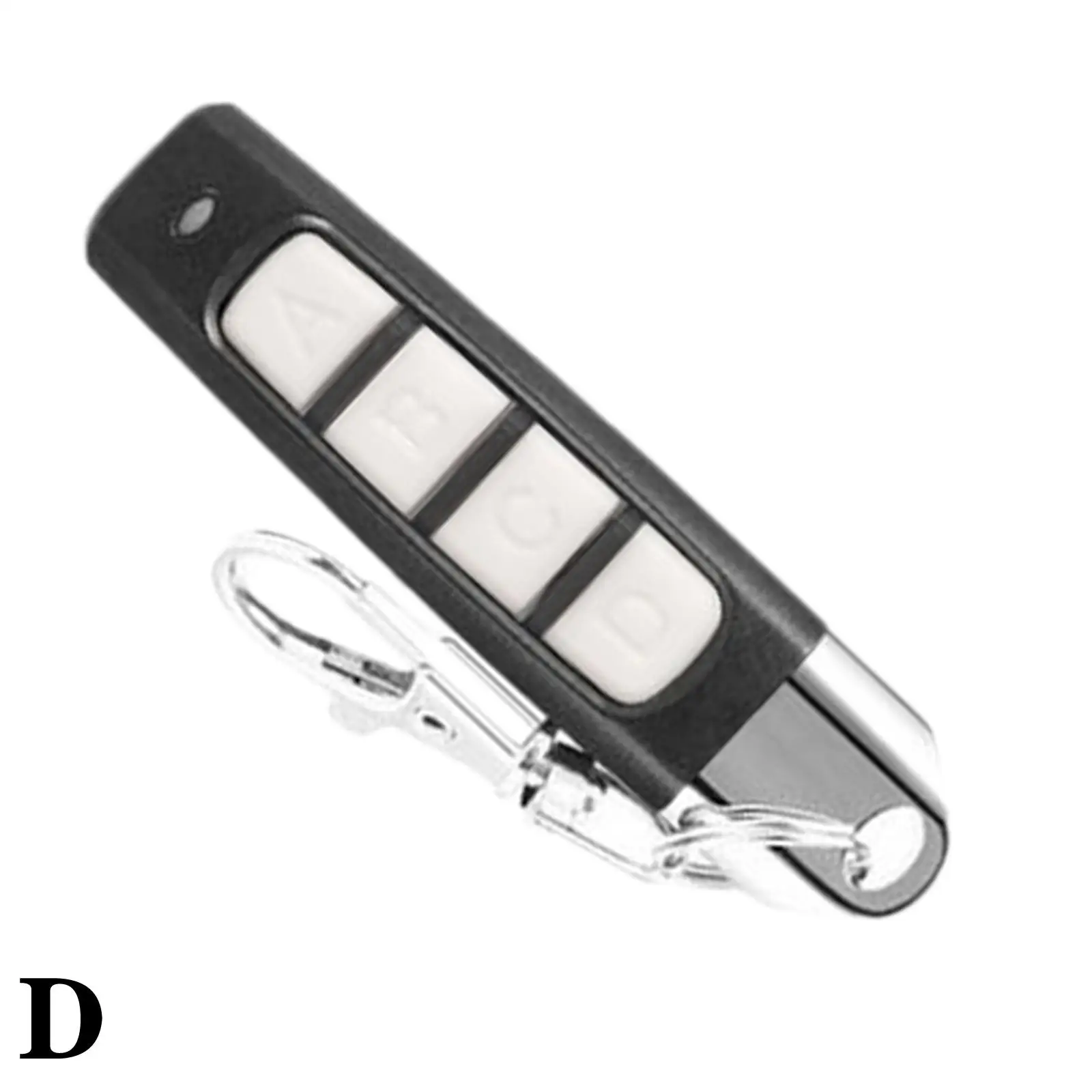

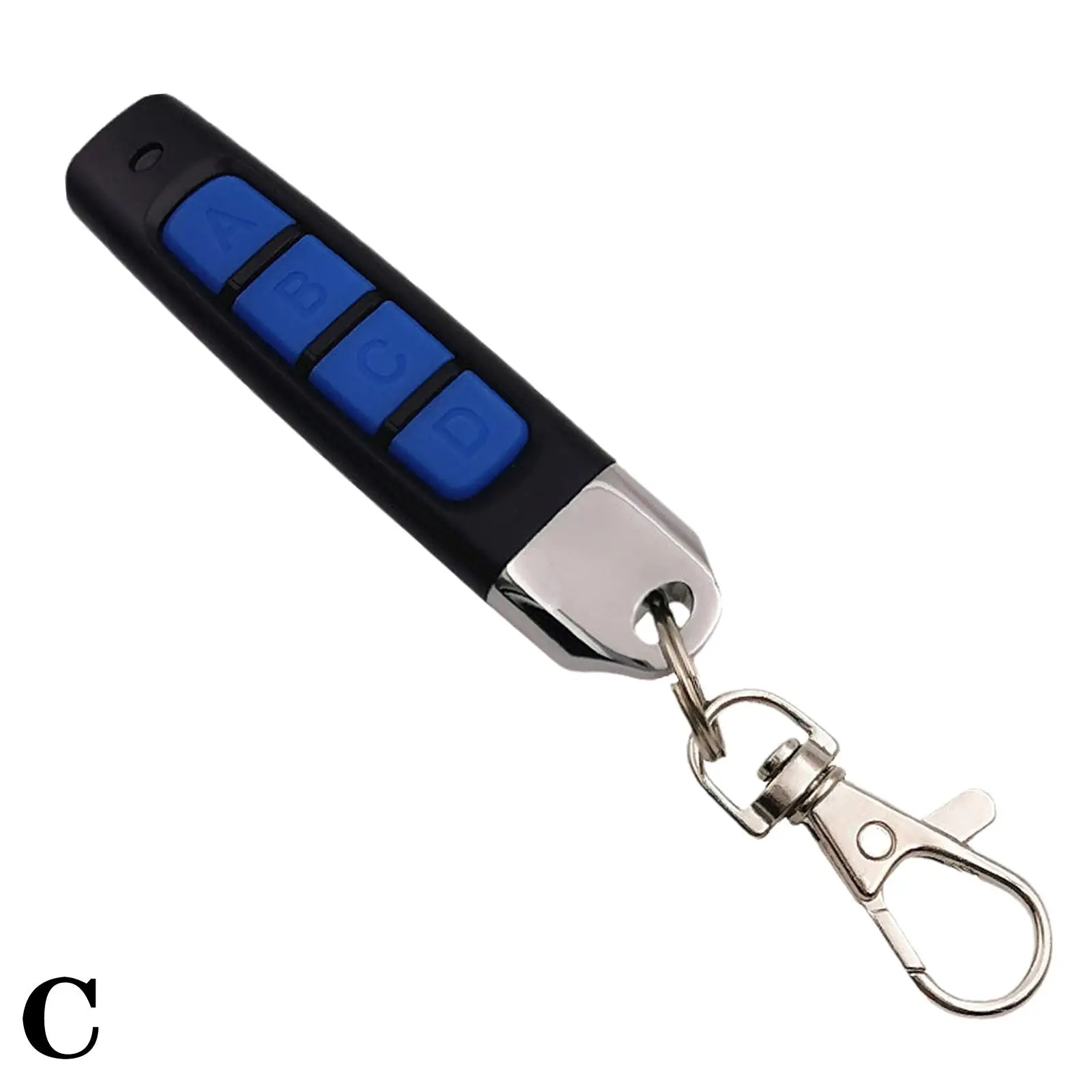

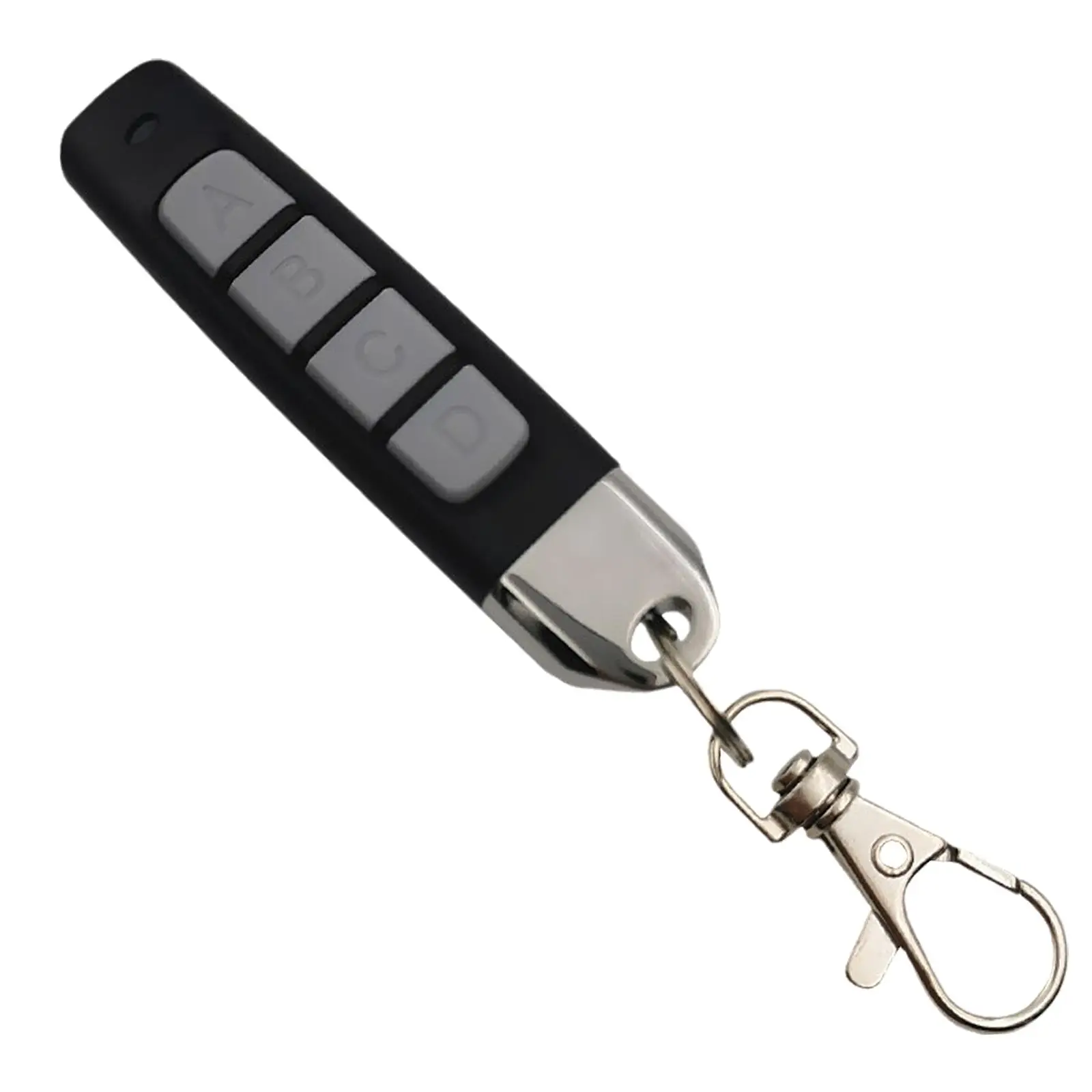

Color: Black/red/blue/white/grey

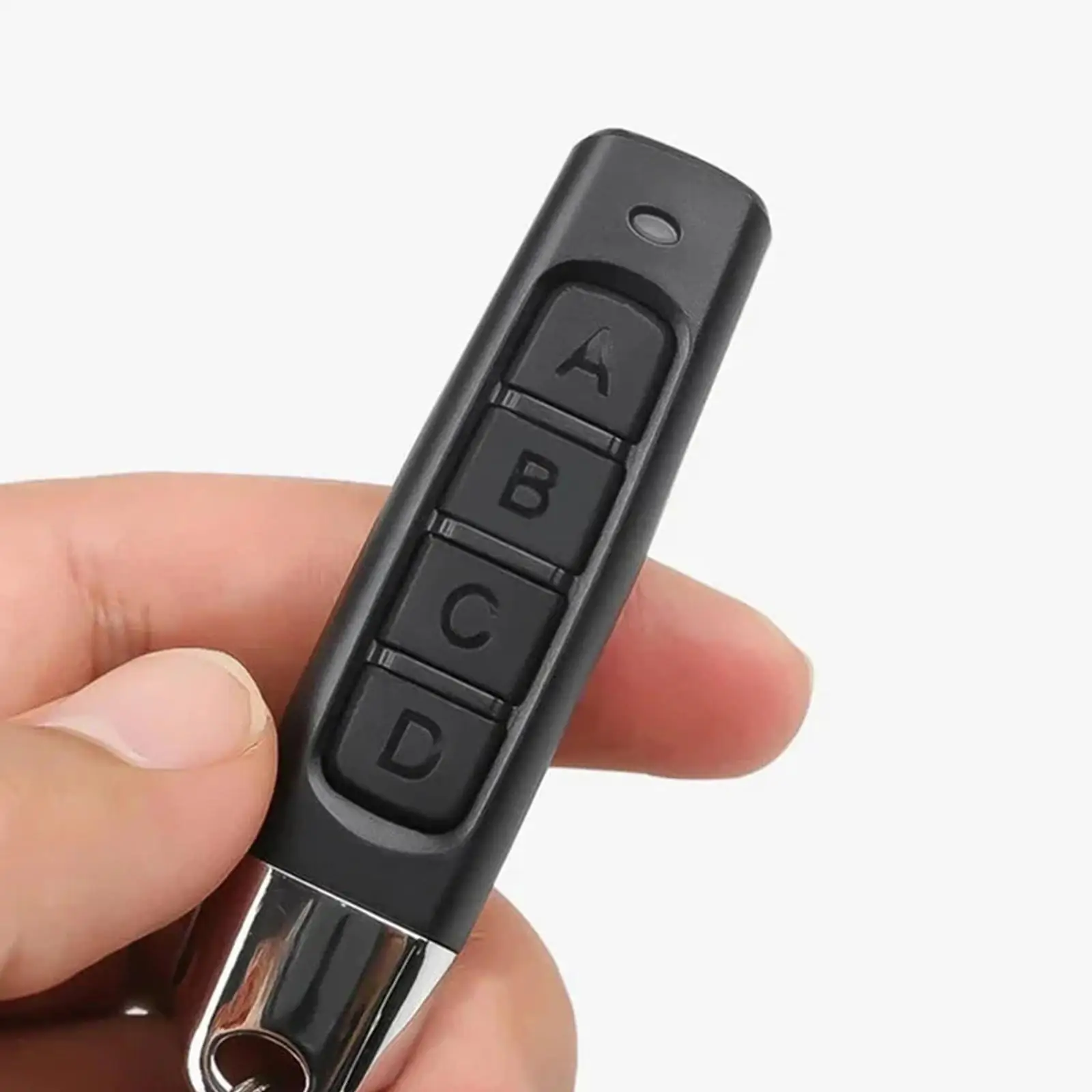

Type: Auto Remote Control Duplicator

Material: Metal+Plastic

Specifications:

Working voltage: DC12V (27A battery is not including)

Operating Current: ≤ 8mA

Working frequency: 433MHz

Modulation Mode: ASK (AM)

The transmission power: ≤ 100mW

Emission Distance: 100 m (proof)

The encoding type: self Copy

The working temperature: -10 ° C to +50 ° C

Works with the following remote control IC modules (please check your original remote control before ordering),and your remotes also should be Fixed code or Learning code. AX5326-3. PT2262. PT2260. EV1527. FP527. PT2242. HT600. HT680. HT6207. HT6010. HT6012. HT6014. AX5326 4. SMC918. PT2240. HT6013. HT6013. HT12D,etc

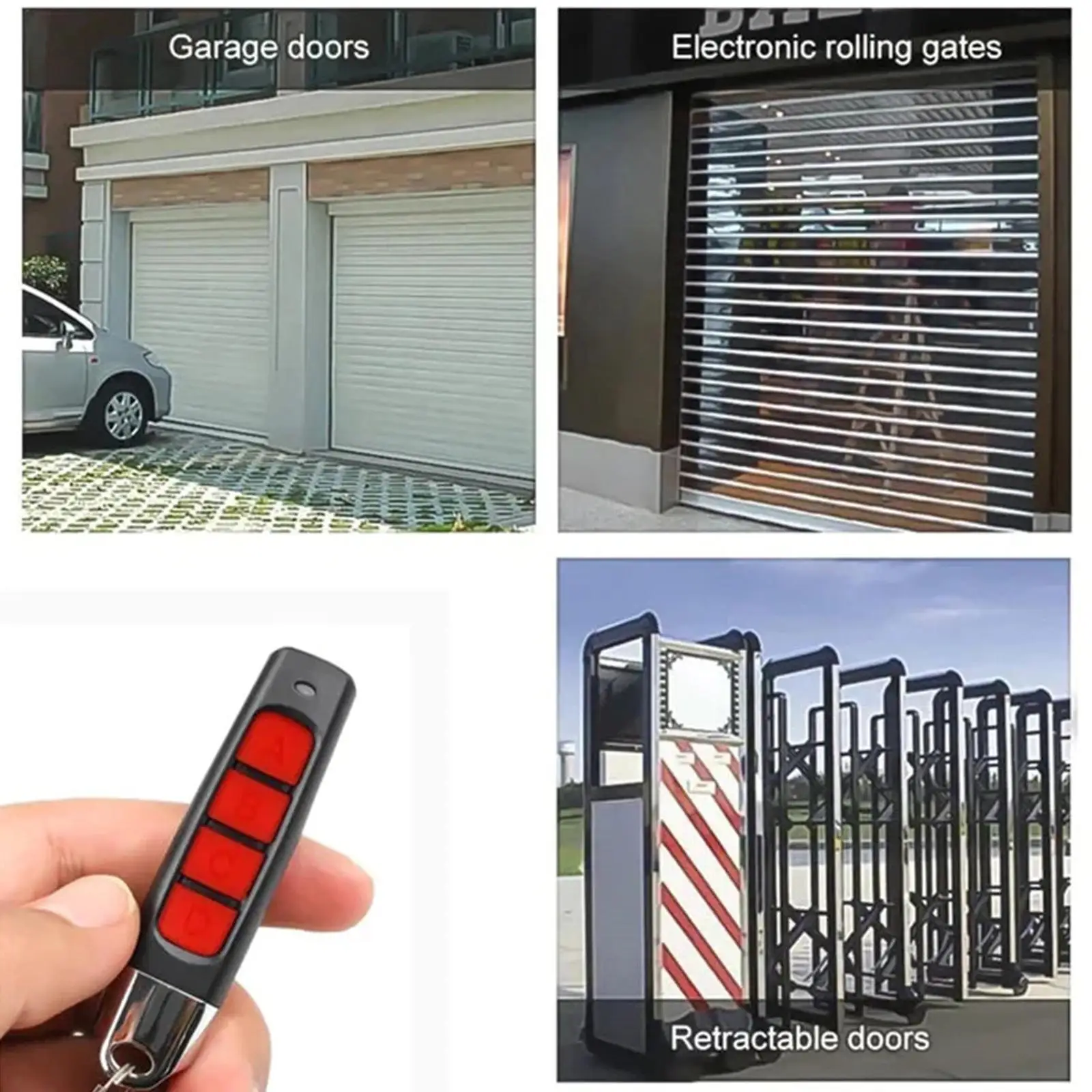

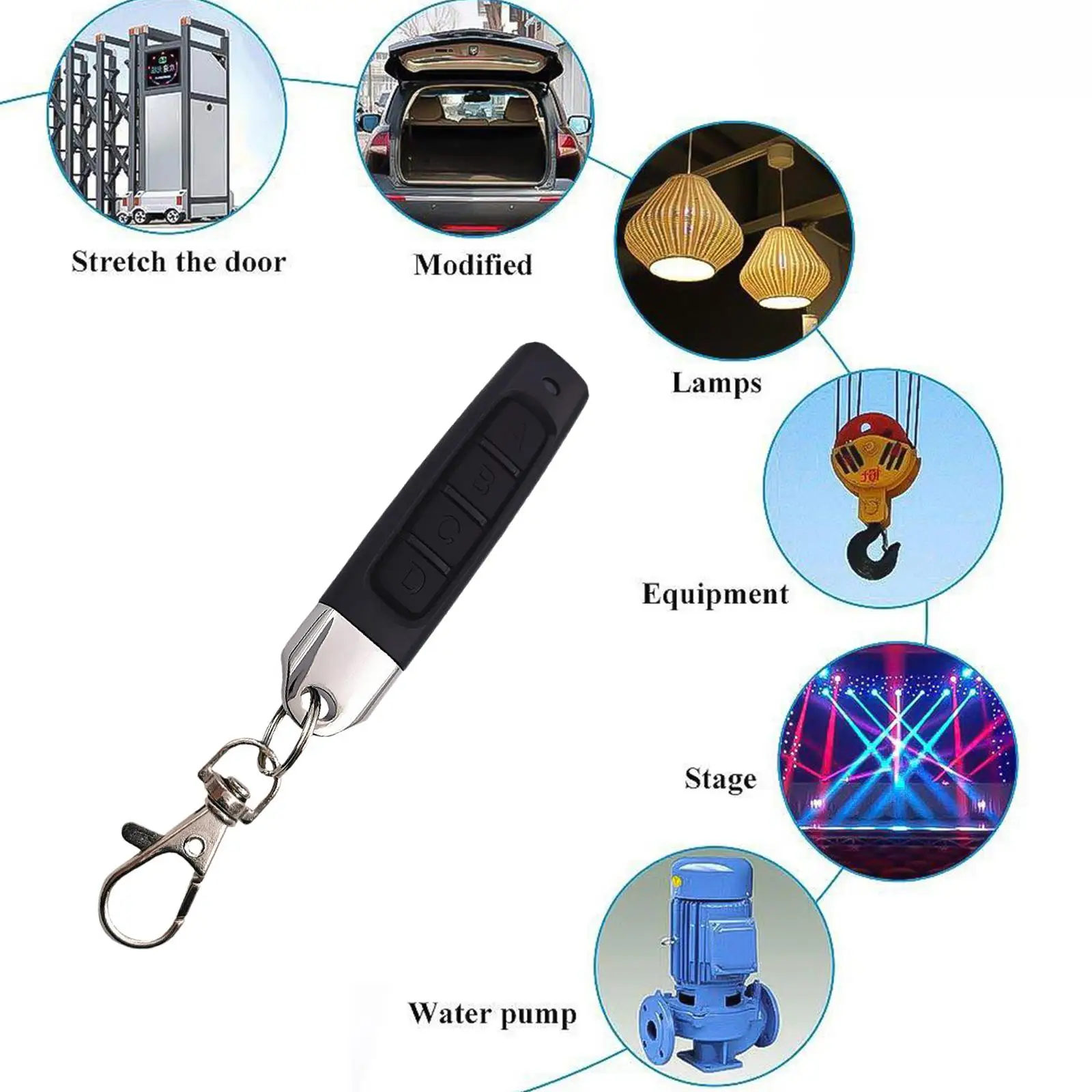

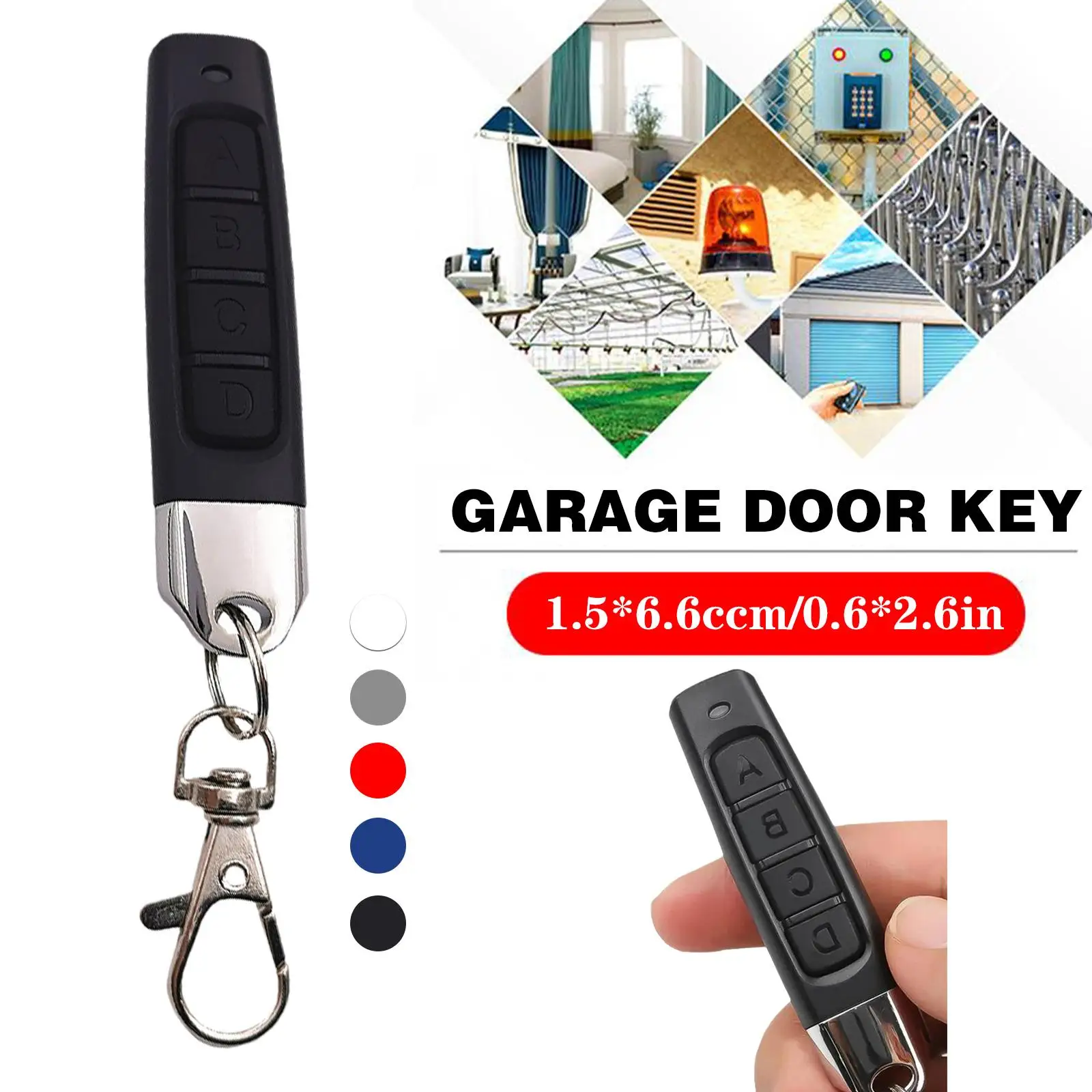

Application: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products

How to Program:

Step 1 –delete the existing code of our remote duplicator

1)Click and Hold A and B buttons together - Led will flash 3 times

2)Keep holding A button and release B button

3)Keep holding A button and push B button 3 times, Led will start flashing Non-stop

Now press any key on the remote control, LED lights are not bright, so delete code success; if you press the button LED lamp is lit, indicating that the original code is not deleted !

Step 2 - clone your original remote

1)Put both remotes Into back to Back position. Make sure they have direct-contact

2)Click and hold 1 button on your original remote and 1 button on your clone remote. Keep holding until led will make 2 blinks then 3 blinks then goes into Steady and you have successfully cloned. ( the left keys follow the same above operation)

If for some reason the clone does not go further then 2 blinks , it means the signal does not go through, please shift the remote slowly up and down until you get the point where it will go through.


Package Contents:
1 x Remote Control Duplicator
