Features:

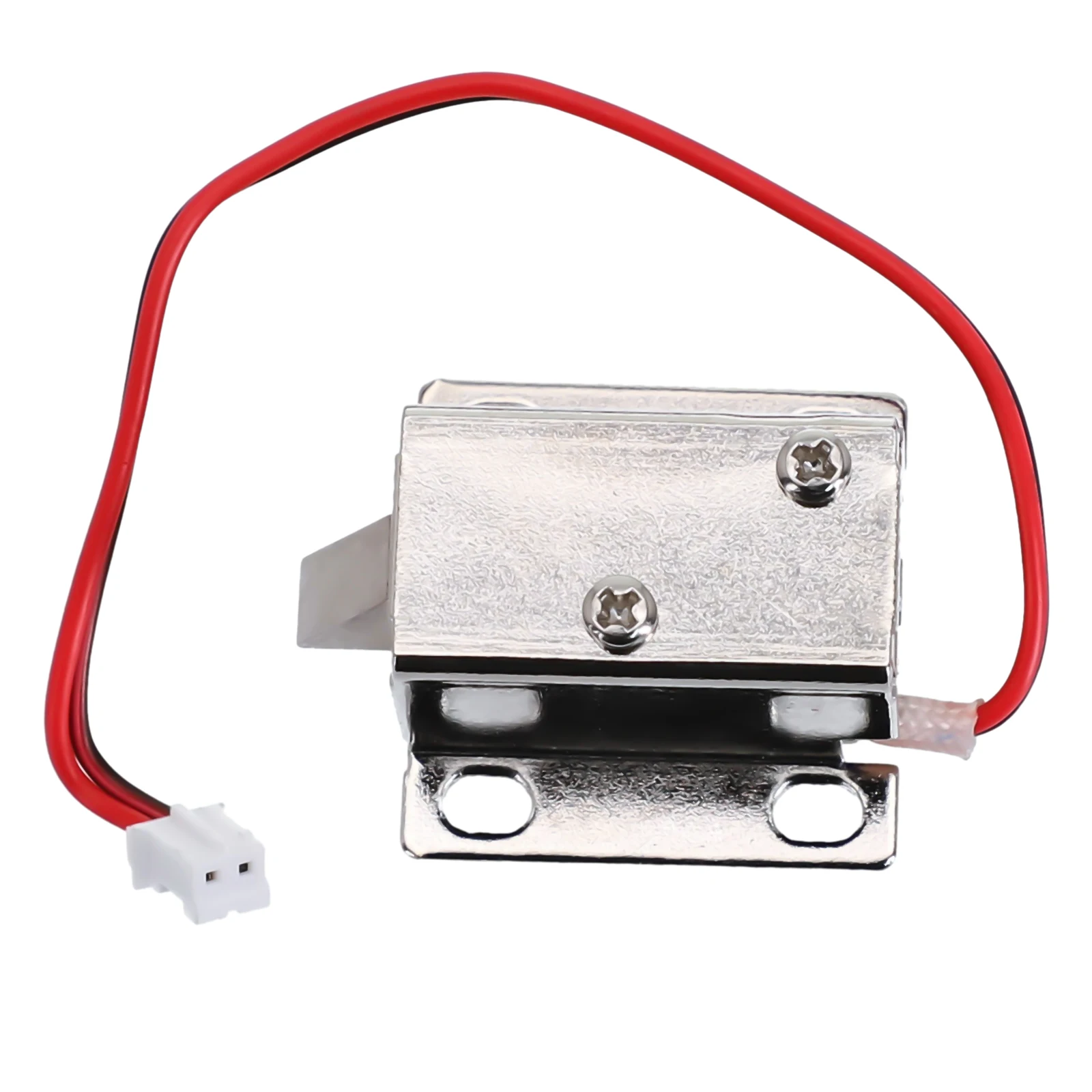

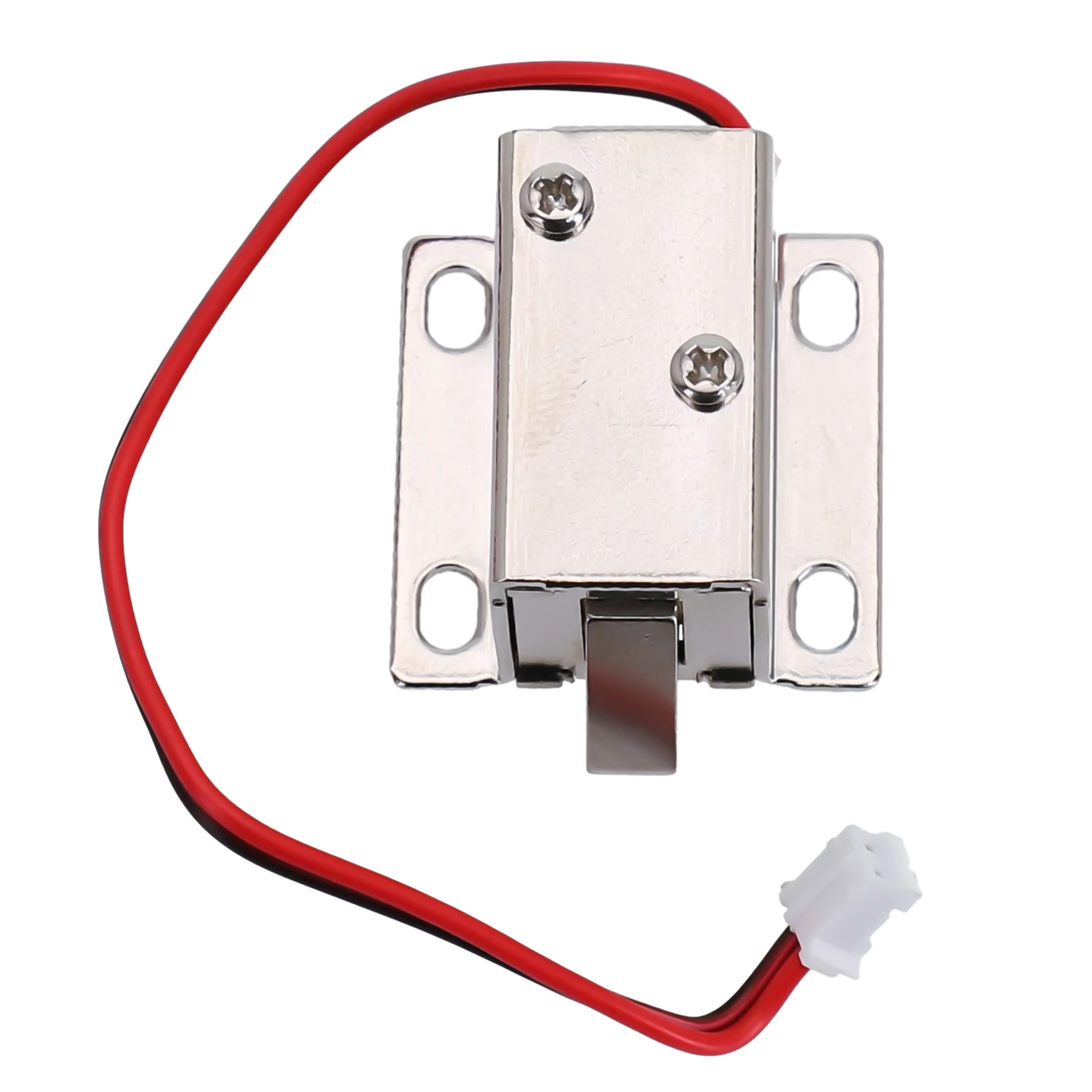

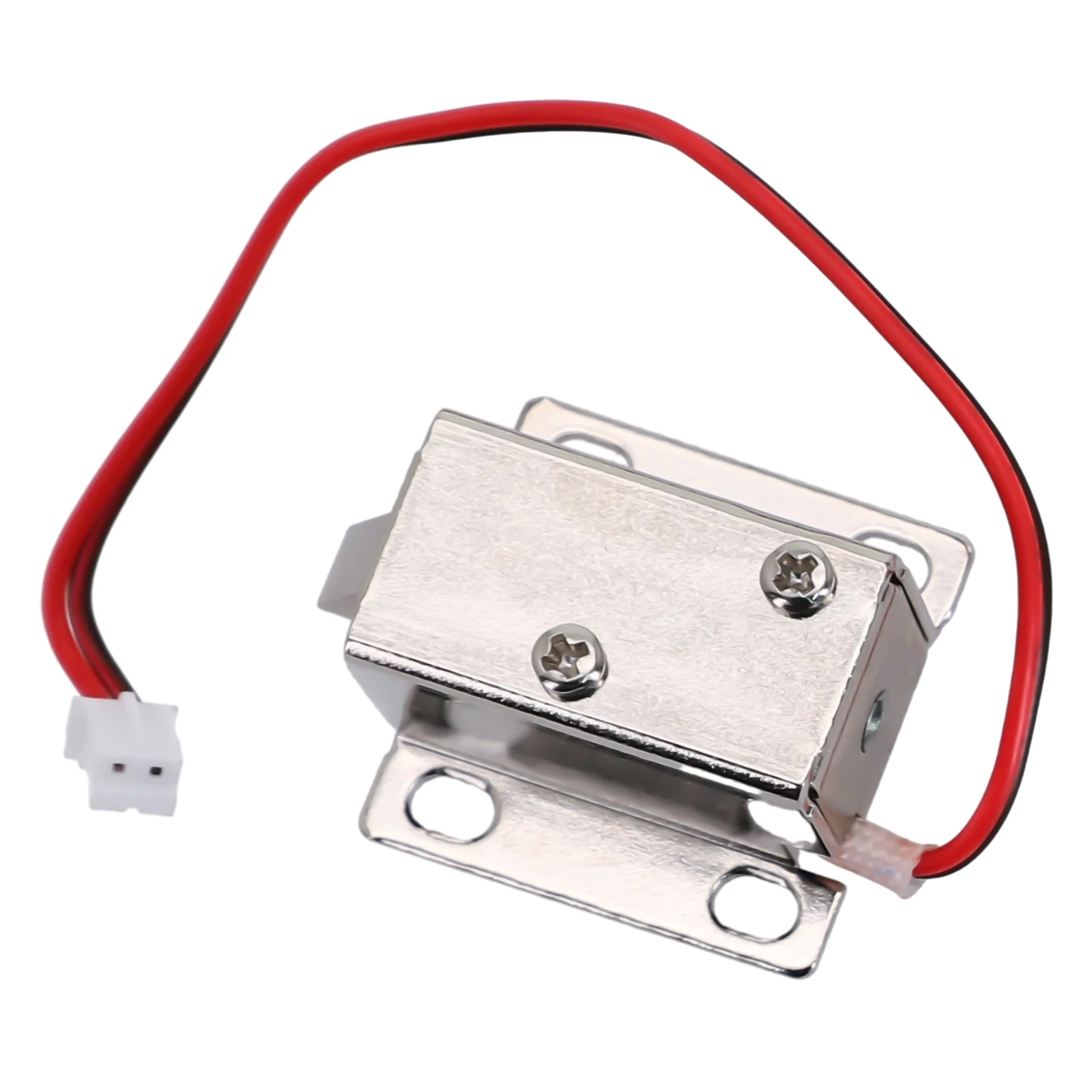

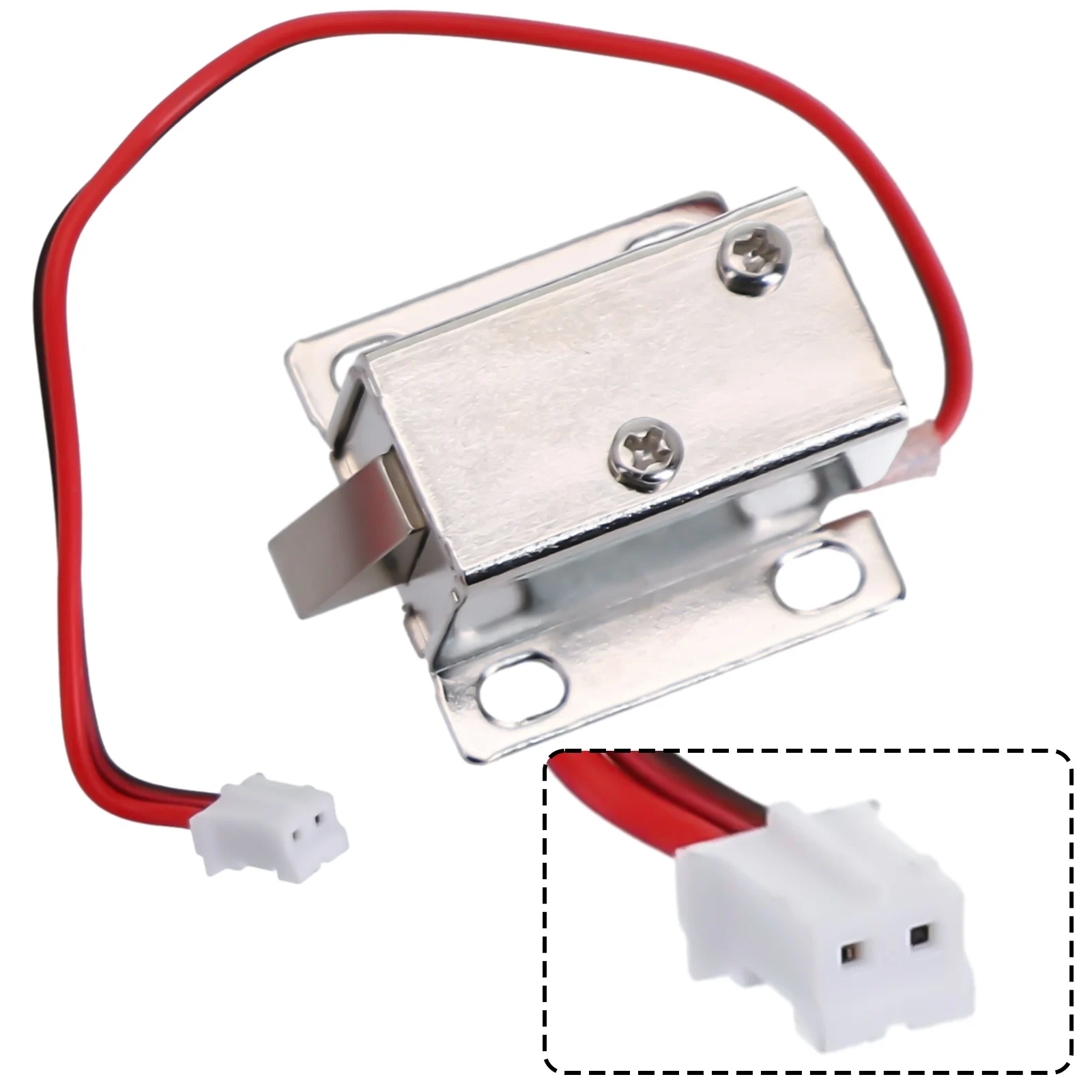

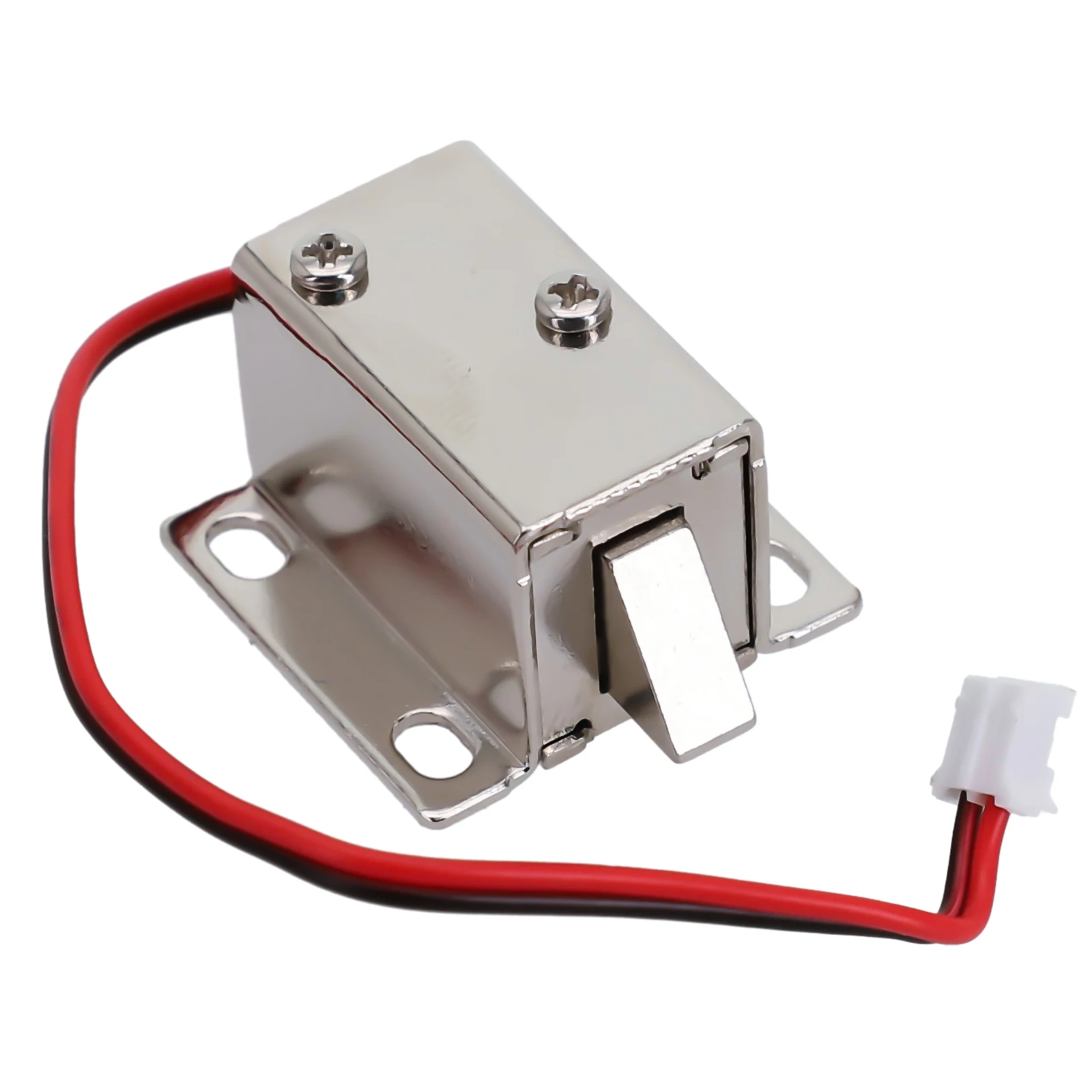

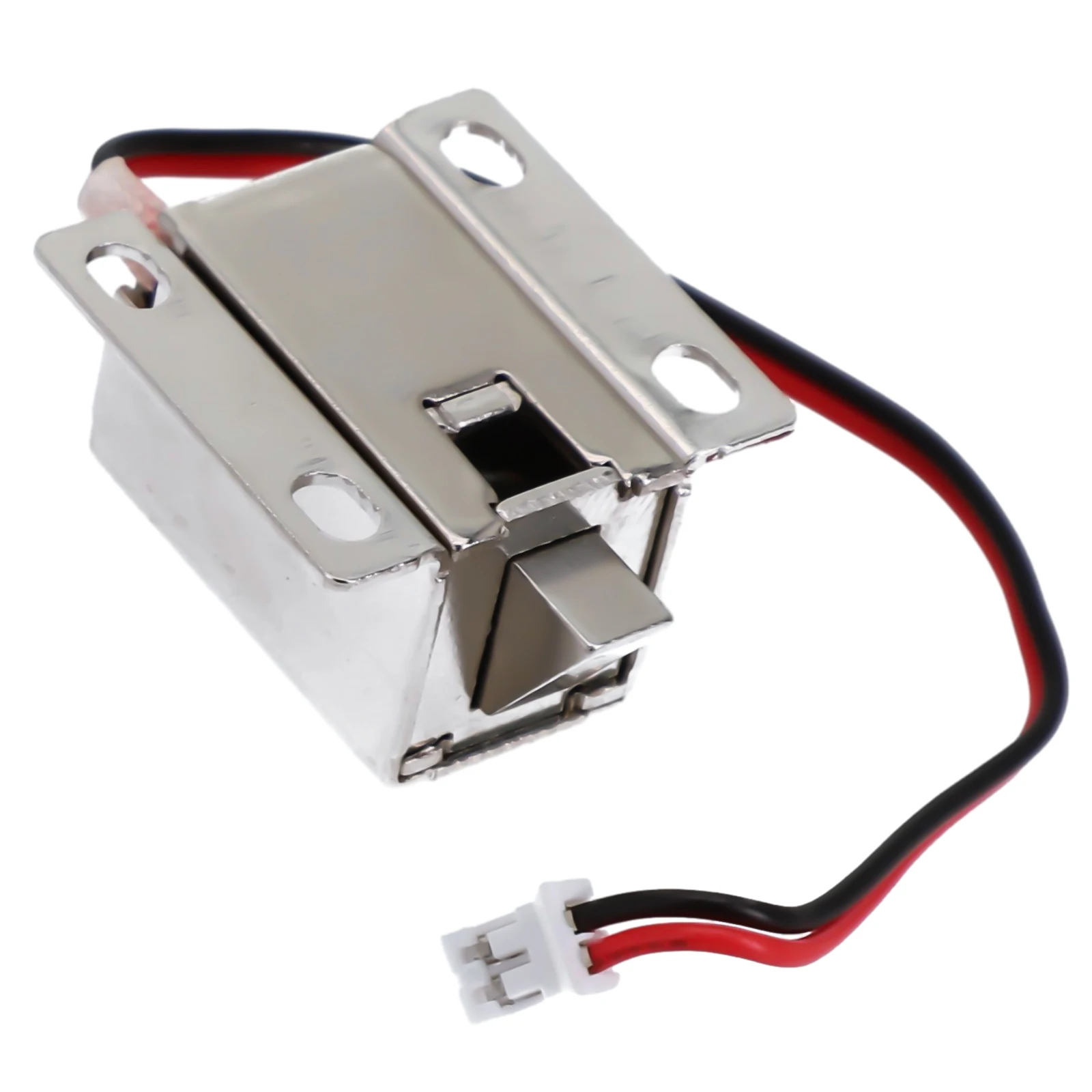

This is a great quality ultra-compact electric lock. Solenoids are basically electromagnets: they are made of a big coil of copper wire with an(a slug of metal) in the middle. When the coil is energised, the slug is pulled into the center of the coil.

It's basically an electronic lock, designed for a cabinet, safe or door(please check the size). Normally the lock is active so you can't open the door because the solenoid slug is in the way. It does not use any power in this state. When the current is applied, the slug pulls in so it doesn't out anymore and the door can be opened.

Specification:

Powered form: Interrupted

Unlock time: 1 second

Rust Proof

Input Current: 0.35A

DC12V

Approximate Dimensions

Length: 27mm

Width: 15mm

Height: 17mm

Tongue Length: 7mm

Tongue Height: 10mm

Cable Length: 120mm

Package Contents:

1*Electronic Latch Lock

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
